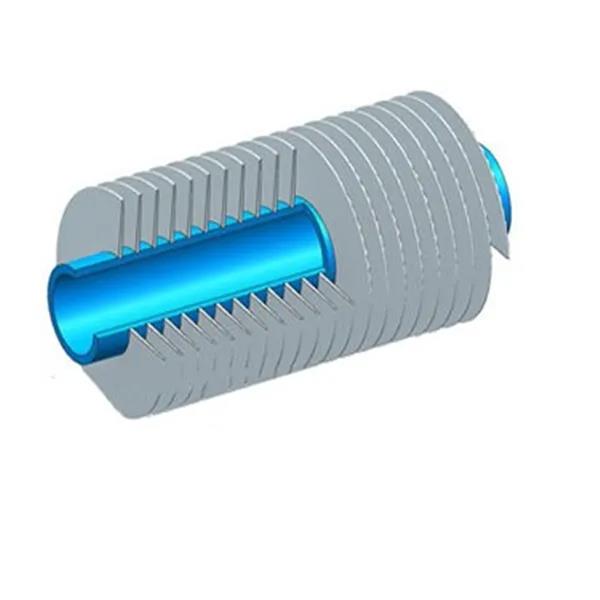

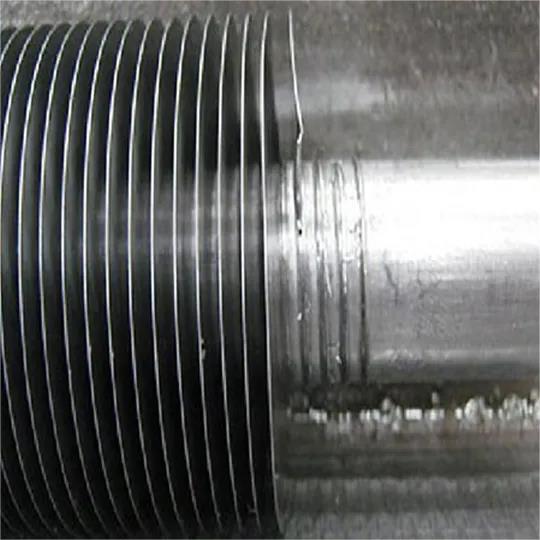

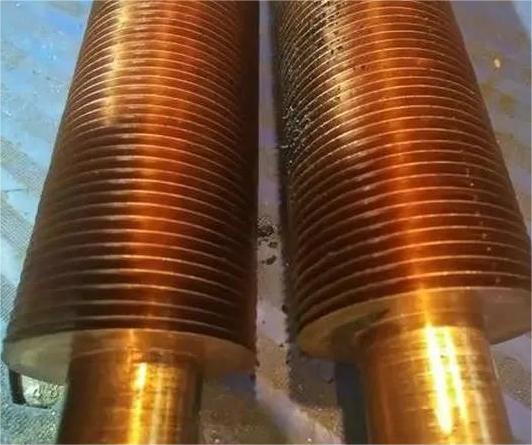

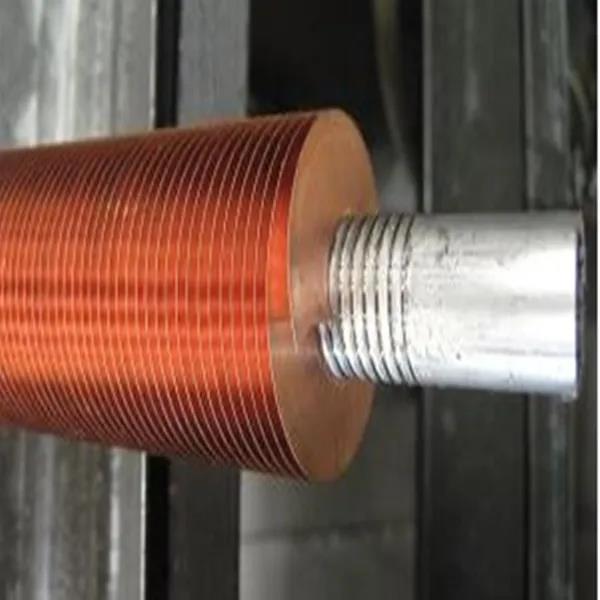

The G FIN TUBE is also known as Embedded Fin Tube. This type of fin tube widely finds acceptance where the requirement is for higher operating temperature and relatively lower corrosive atmosphere. The fins are manufactured by embedding the fin strip into a groove formed on the base tube. The Fin is allowed to be placed in the groove and then the backfilling of the groove is carried out to ensure firm adherence of the fins to the base tubes. Because of the process this type of Fin Tube is also known as ‘G’ Fin tube or Grooved Fin Tube. |
Specification
Tube OD | 19~51 (mm) |
Tube Wall Thk | 2.11~3.5(mm) |
Tube Length | ≤18,500 (mm) |
Fin Thk | 0.3~0.5 (mm) |
Fin Height | 10~16 (mm) |
Fin Pitch | 100~433 FPM |
Application fields * Petroleum, chemcial and petrochemcial industries * Natural gas treatment * Steel industry: blast furnace and converter system * Power generation: steam turbine exhaust gas condensation, condensation water contact circulation cooling condensation * Air conditioning (freon, ammonia, propane) * Waste incineration equipment * Compressor cooler, etc |
