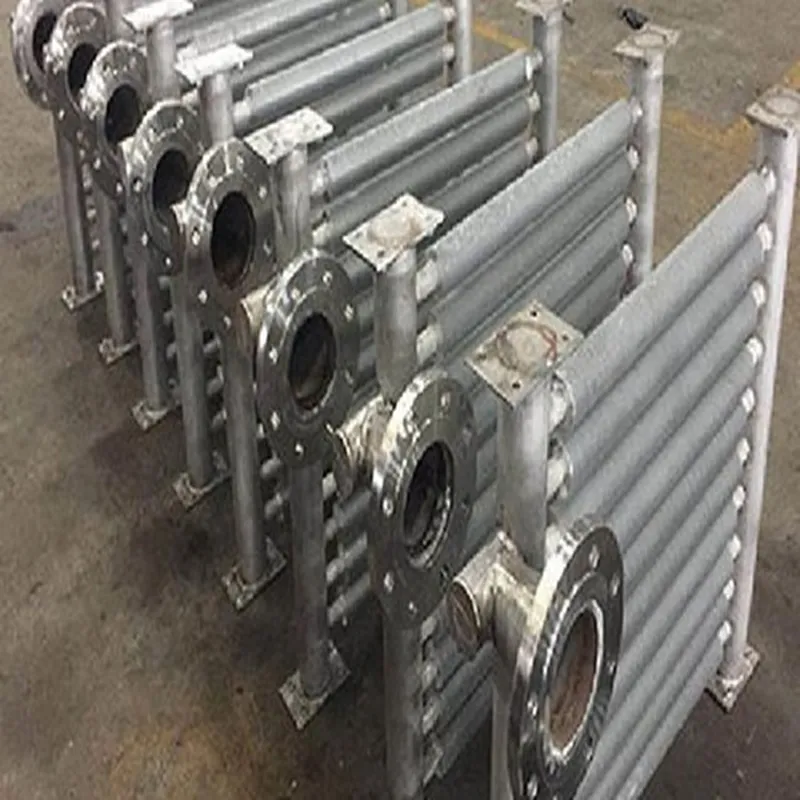

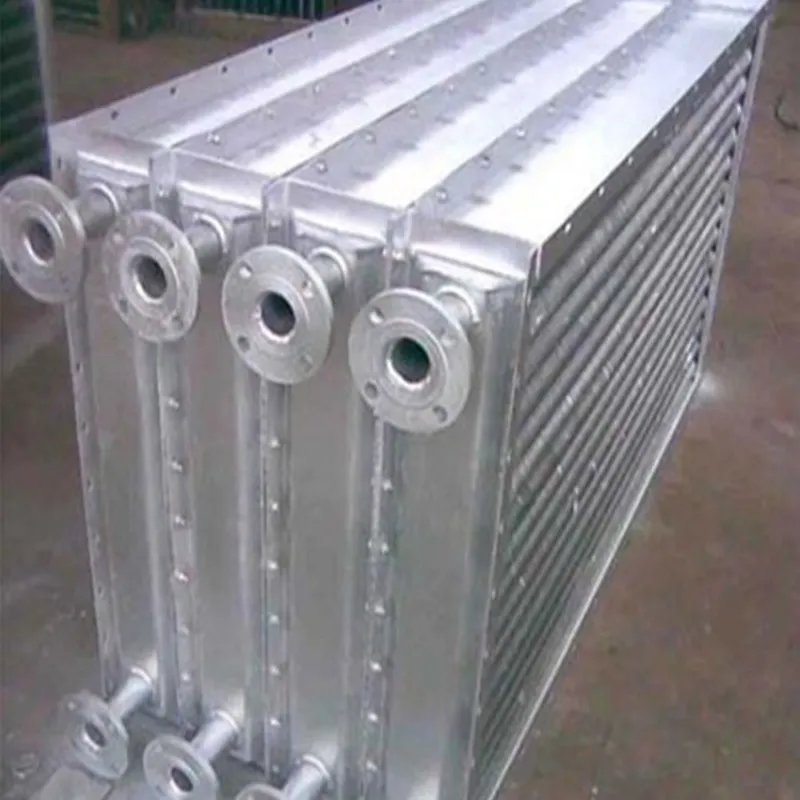

Steel radiator
Steel radiator, with compact structure, good air tightness, easy installation and other characteristics. It is suitable for both steam and hot water systems. It is widely used in the air heating system of ventilation and drying equipment in large buildings.
Structure specification:
Manufactured in accordance with the national standard atlas, which is composed of carbon steel frame and carbon steel heat sink pipe (carbon steel heat sink pipe). The steel heat sink pipe is fixed by frame, which has compact structure, good air tightness and convenient installation.
Mainly composed of smooth air flow to three rows of the cooling bundles, fork arrange, SRZ fin tube radiator in Ф 22 X 2 mm seamless steel tube winding 16 X 0.5 mm on the buckling of steel belt, spiraling, SRZ steel radiator fin spacing has 5 mm - big "D", "Z", 8 in 6 mm - mm - small "X" three categories, a total of 38 kinds of specifications.
Scope of application:
It is a kind of steel radiator used for heating air, which is suitable for both steam system and hot water system. It is mainly used for hot air heating, air conditioning system and air heating of drying device. It is the main equipment in hot air device. SRZ steel radiator is widely used in the heating and ventilation system of industrial and mining enterprises and large buildings. Working medium: steam (< 1.0mpa), hot water (<130℃)

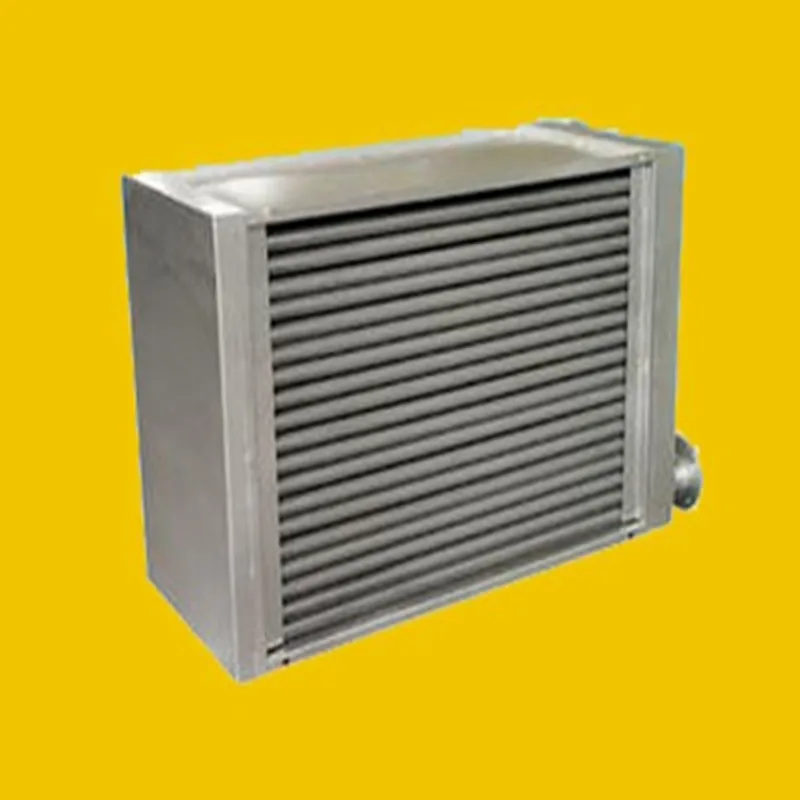

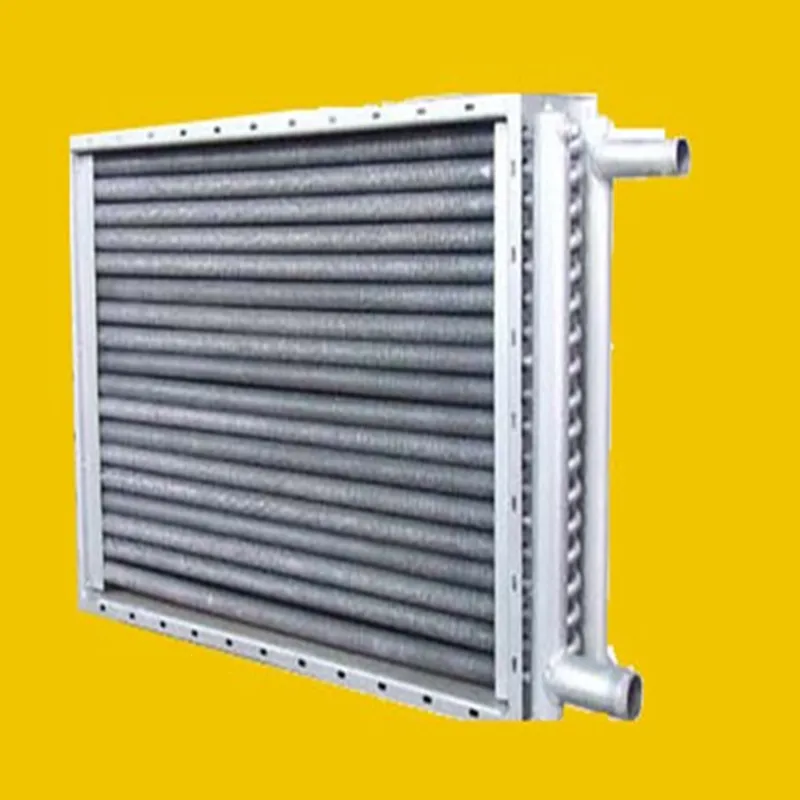

Aluminum radiator
Aluminum radiator is a new type of air heater based on steel radiator. The heat exchange element of this product adopts steel tube -- aluminum sheet "L" type finned tube, the working temperature can reach 230℃, it has the advantages of a rigid tube with close contact, no folding, no accumulation of dust, good vibration resistance, and can protect the tube from air erosion.
Compared with steel radiator, heat dissipation area increased by 10-20%, weight reduced by about 30%, the same working condition heat can be increased by 10-20%. Suitable for steam and hot water systems, can be widely used in hot air heating, material drying and air conditioning systems air heating.
The heat medium used in the radiator is steam or hot water. The steam working pressure is 2.6mpa and the hot water temperature is 70-130℃.
Radiator according to the heat dissipation area is big (D- piece distance 4mm), in (Z- piece distance 5mm), small (X- piece distance 7mm) three types, a total of 41 specifications.
