Material combinations:
Tube | Stripe |
Stainless steel | Stainless steel |
Stainless steel | Aluminum |
Stainless steel | Copper |
Carbon steel | Carbon steel |
Carbon steel | Aluminum |
Copper nickel | Aluminum |
Copper nickel | Copper |
Titanium | Titanium |
Titanium | Copper |
Dimensions:
Tube outside diameter | 8.0-84.0mm |
Fin outside diameter | 15.00-125.00mm |
Fin pitch | 3-14fin/inch |
Fin height | 4.0mm-17.00mm |
Fin thickness | 0.3mm-1.0mm |
Maximum tube lengths | 12m |

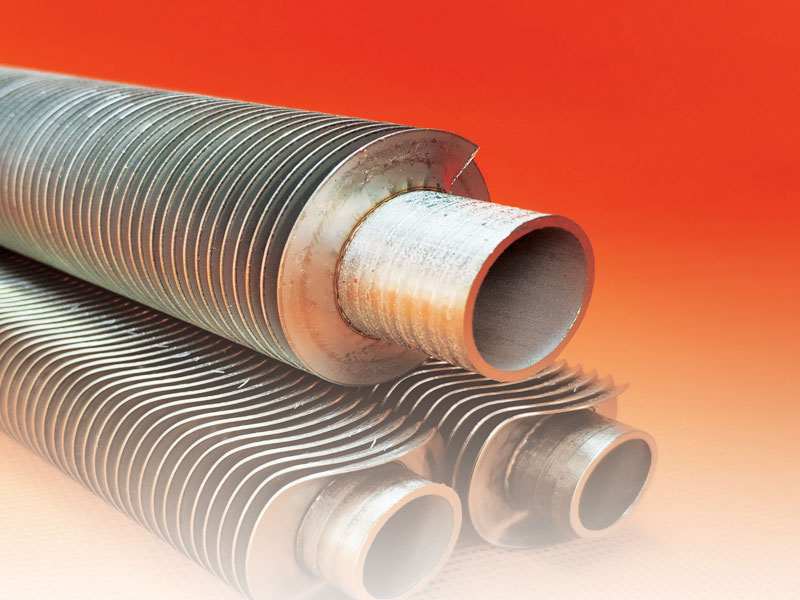

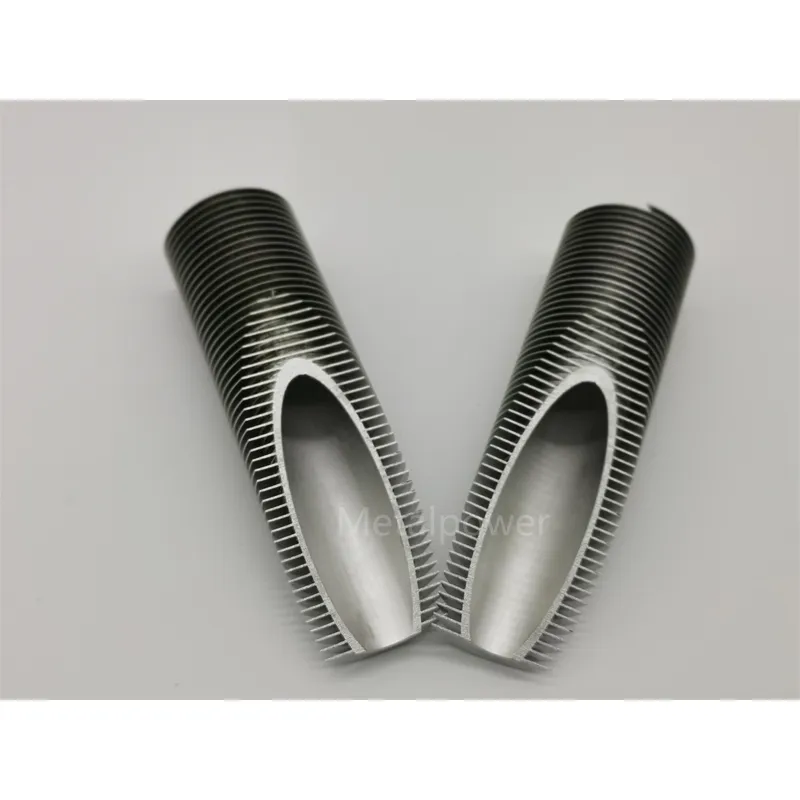

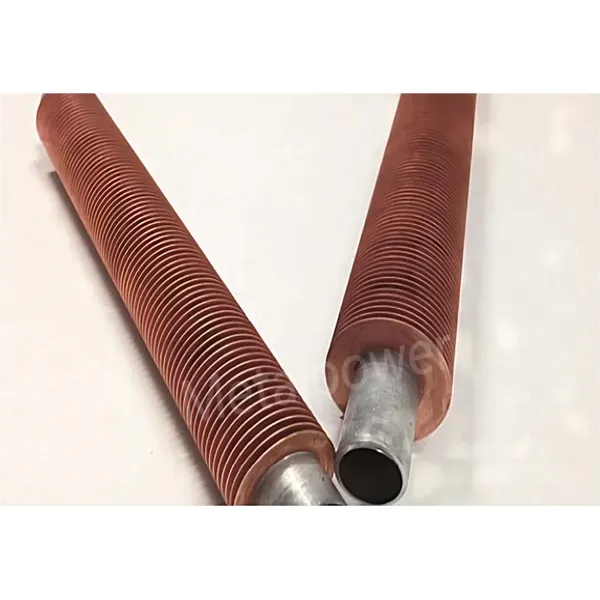

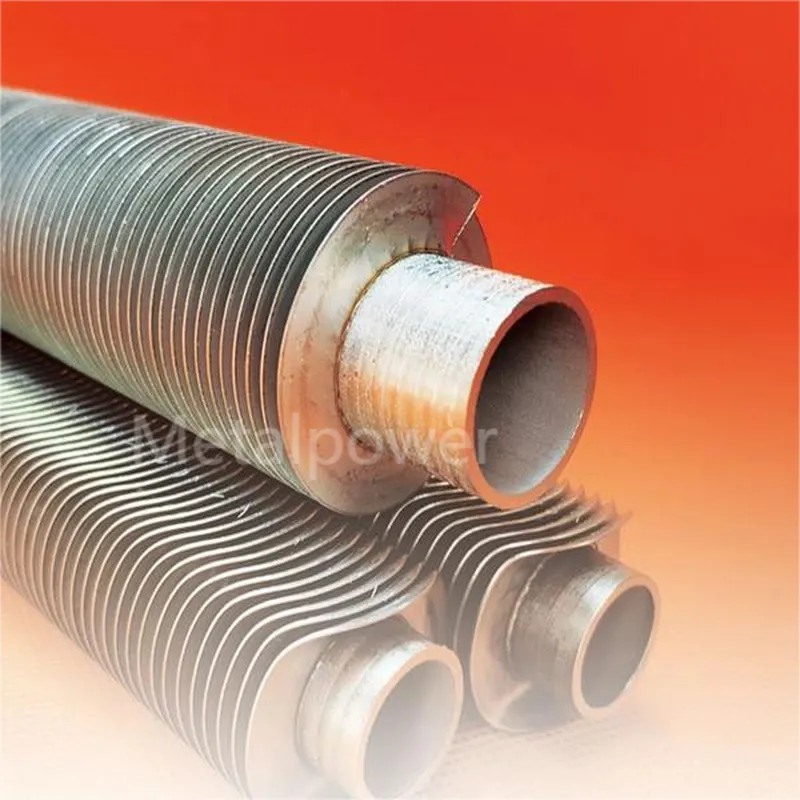

Stainless Steal Laser Welded Fin Tube Straight Tube:
Advantages: high heat transfer efficiency, strong corrosion resistance, and strong welding seam.
The fin can be made with different shapes. These fin tubes can be used on condensing heating system.
Common materials: 316L, 304,904L, etc.
